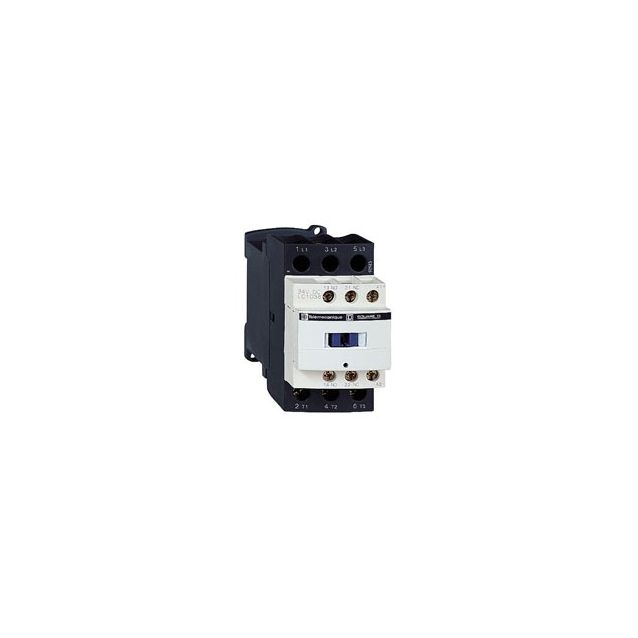

TeSys kontaktori 38A 230VAC LC1D38P7

Tuotetiedot:

• Tuotemerkki: Schneider Electric
• Sähkötuotesarja: TeSys
• Tuotenumero: S-3860154
• Korkeus: 85 mm
• Syvyys: 92 mm
• Leveys: 45 mm

• napojen tyyppi 3P
• number of NO poles 3
• verkon taajuus 25...400 Hz
• kontaktorin nimellisvirta D38
• auxiliary contacts nature mirror contact IEC 60947-4-1 1 NC
• mechanically linked contact IEC 60947-5-1 1 NC 1 NO
• olign: top">IP degree of protection IP2x VDE 0106
• Ith cnvtl free air
• ohjauspiiri AC
• ohjauspiirin taajuus 50/60 Hz
• fire resistance 960 °C IEC 60695-2-1
• Ue rated operational voltage 690 V built-in auxiliary contacts
• 690 V pole
• Ui rated insulation voltage 600 V CSA built-in auxiliary contacts
• 600 V CSA pole
• 600 V UL built-in auxiliary contacts
• 600 V UL pole
• 690 V IEC 60947-1 built-in auxiliary contacts
• 690 V III 3 IEC 60947-4-1 pole
• Uimp rated imp wstdvoltage 6 kV IEC 60947
• standardit EN 60947-1
• IEC 947-1
• IEC 947-4-1
• PTB
• BS 5424
• DNV
• EN 60947-4-1
• GL
• JEM 1038
• NF C 63-110
• VDE 0660
• hyväksynnät CSA
• Sichere trennung
• SNCF
• UL
• kokonaisleveys, mm 45 mm
• kokonaiskorkeus, mm 85 mm
• kokonaissyvyys, mm 92 mm
• paino 0.38 kg
• kontaktori LC1D
• toimintalämpötila, ºC -5 °C-60 °C
• alue Tesys
• Suojaava päällys mukana
• terminals description ISO n°1 (13-14)NO
• (21-22)NC
• (A1-A2)CO
• varastointilämpötila -60 °C-80 °C
• permissible ambient air temperature around the device -40 °C-70 °C
• product or component type kontaktori
• connections - terminals screw clamp terminals control circuit 1 1 - 4 mm2 flexible with cable end
• screw clamp terminals control circuit 1 1 - 4 mm2 flexible without cable end
• screw clamp terminals control circuit 1 1 - 4 mm2 solid without cable end
• screw clamp terminals control circuit 2 1 - 2.5 mm2 flexible with cable end
• screw clamp terminals control circuit 2 1 - 4 mm2 flexible without cable end
• screw clamp terminals control circuit 2 1 - 4 mm2 solid without cable end
• screw clamp terminals power circuit 1 1 - 10 mm2 flexible with cable end
• screw clamp terminals power circuit 1 1.5 - 10 mm2 solid without cable end
• screw clamp terminals power circuit 2 1.5 - 6 mm2 flexible with cable end
• screw clamp terminals power circuit 2 2.5 - 10 mm2 flexible without cable end
• screw clamp terminals power circuit 2 2.5 - 10 mm2 solid without cable end
• screw clamp terminals power circuit 1 2.5 - 10 mm2 flexible without cable end
• flame retardance V1 UL 94
• inrush power in VA 70 VA 20 °C 0.75 50/60 Hz
• IP degree of protection IP2x VDE 0106
• Ith cnvtl free air therm crrt 50 A <= 60 °C
• 10 A <= 60 °C
• non-overlap time 1.5 ms on energisation
• operating altitude 3000 m without
• operating rate <= 3600 cyc/h <= 60 °C
• permissible short-time rating 100 A 1 s built-in auxiliary contacts
• 120 A 0.5 s built-in auxiliary contacts
• 140 A 0.1 s built-in auxiliary contacts
• 150 A <= 40 °C 60 s pole
• 310 A <= 40 °C 10 s pole
• 60 A <= 40 °C 600 s pole
• 430 A <= 40 °C 1 s pole
• power dissipation per pole 3 38 A AC-3
• power dissipation per pole 5 50 A AC-1
• rated breaking capacity 550 A 440 V IEC 60947
• separation insulation 400 V VDE 0106 Part 101 A1
• shock resistance 15 gn contactor closed 11 ms
• 8 gn contactor opened 11 ms
• short-circuit protection 63 A gG <= 690 V
• 10 A gG IEC 60947-5-1
• tightening torque 2.5 N,m
• 1.7 N,m
• vibration resistance 4 gn contactor closed 5 - 300 Hz
• 2 gn contactor open 5 - 300 Hz

Pakkauksen mitat ja paino:

• Rahtipaino (kg): 1,00
